Acceleration Shock Test Mechanical Impact Test Equipment Save Energy 50 Kg Load Capacity
Application:
Save Energy Mechanical Impact Tester, SS-50 Acceleration Shock Test is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
SS-50 Acceleration Shock Test Technical Parameters:
| Model | SS-5 | SS-10 | SS-25 | SS-50 | SS-100 | SS-200 | SS-400 |
| Load Capacity (Kg) | 5 | 10 | 25 | 50 | 100 | 200 | 400 |
| Table Size (mm) | 120x120 | 200x200 | 350x350 | 450x450 | 650x650 | 750x750 | 850x850 |
| Pulse Acceleration (m/s2) | Half Sine Wave | 150~15000 | 150~15000 | 150~15000 | 150~6000 | 150~6000 | 150~3500 | 150~1500 |
| Trapezoid Wave | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~500 |
| Sawtooth Wave | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~500 |
| Pulse width | Half Sine Wave | 0.5~18 | 0.6~18 | 0.8~25 | 1.5~30 | 1.5~30 | 2~30 | 6~30 |
| Trapezoid Wave | 6~12 | 6~12 | 6~18 | 6~12 | 6~12 | 6~12 | 6~12 |
| Sawtooth Wave | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
| Drive Mode | Mechanical drive | Hydraulic drive |
| External Dimension WxHxD (mm) | 800x2200x900 | 800x2200x900 | 850x2250x950 | 1000x2600x1300 | 1100x2700x1400 | 1300x2700x1600 | 1300x2700x1650 |
| Weight (Kg) | 600 | 700 | 900 | 2600 | 3300 | 4000 | 4500 |
| Hydraulic Oil | No #46 hydraulic oil |
| Power | AC 380V 50/60HZ |
Save Energy Mechanical Impact Tester Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;
More Pictures for reference:

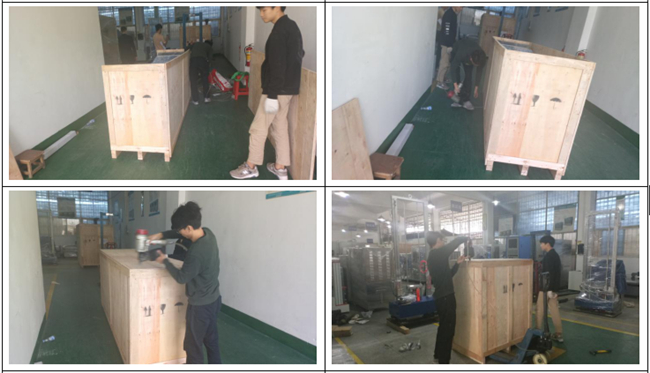

Packing Detail:
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Save Energy Mechanical Impact Tester, SS-50 Acceleration Shock Test is our star products , and we had obtained the CE certification for this machine.
